GT Cockpit Accessory Mount

RACING SIMULATOR COCKPIT ACCESSORY MOUNT

BEFORE YOU START

Please take a moment to carefully read this guide prior to assembling.

This product is also part of our comprehensive ClubSport GT Cockpit Quick Start Guide. To learn more, visit: https://www.fanatec.com/p/cockpits/cs_gt_c_blk/clubsport-gt-cockpit-black

CAUTION: Your cockpit is engineered from steel for strength and durability.

Some of the components are heavy. Please excersise caution when handling these parts.
Ensure the chosen build area is clutter free and there is sufficient space for assembly.
Use a soft floor covering such as an old blanket or rug to protect both the finish of your Fanatec ClubSport GT cockpit and your floor during assembly.
To avoid stripping bolt threads, do not overtighten.
At the end of this guide, you will also find setup tips, suggestions for various driving positions, and peripheral mounting.

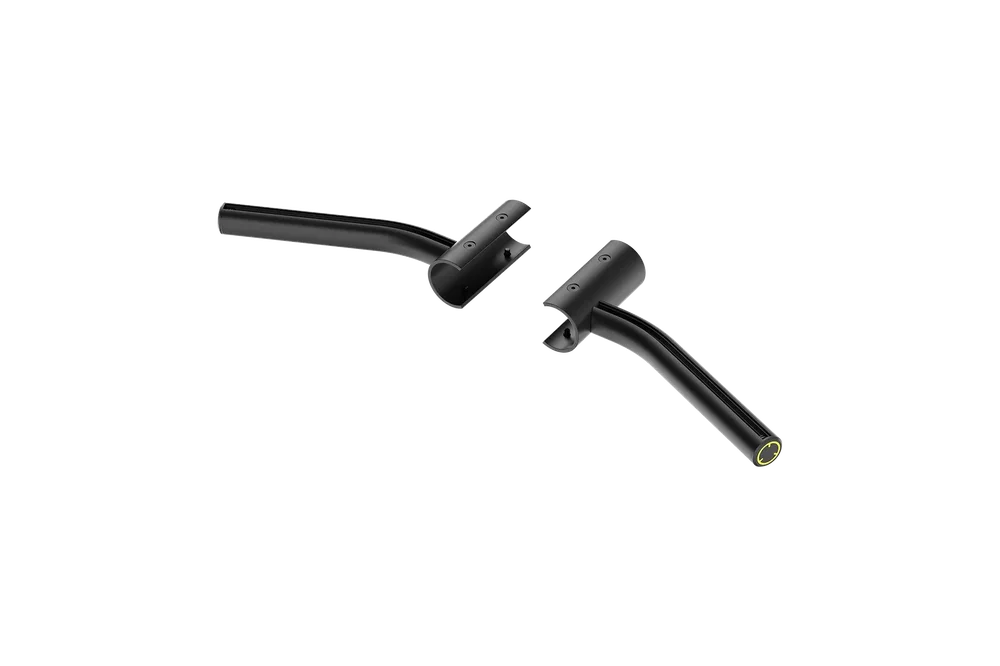

INSTALLING THE LEFT AND RIGHT UPPER ACCESSORY MOUNTS

Open the hardware bag labeled UPPER ACCESSORY (TUBE).

To complete the step, the following hardware and tools will be used:

M6 Allen Key

M6 12mm Bolts (4x)

M6 20mm Countersunk Bolts (4x)

M6 Curved Washers (4x)

M6 T-Nuts (4x)

1/4 Inch 20 T-Nuts (4x)

Mounting Plates (8x)

NOTE: The Mounting Plates (M) and T-Nuts (N2, N3) are used for installing third-party accessories. Installation process is covered in the INSTALLING OPTIONAL THIRD-PARTY ACCESSORIES section.

Carefully slide the optional Upper Accessory Mounts over the steering tubes on the left and right sides of the frame.
Secure the mounts by screwing in two M6 20mm Countersunk Bolts (C4) to the upper side and two M6 12mm Bolts (B3) with two M6 20mm curved washers (W6) to the underside. The concave side of the curved washer must face the frame.
Repeat the process for the opposite side of the frame.

CS_GT_C_INSTALLING_THE_LEFT_AND_RIGHT_UPPER

OPTIONAL: INSTALLING THIRD-PARTY ACCESSORIES

ADDING THE T-NUTS TO THE ACCESSORY RAILS

To complete the step, the following hardware and tools from step 10A will be used:

M5 Allen Key

Insert the T-Nuts (N2, N3) into the channel with Spring Plates on their undersides.
Insert the Allen Key and apply slight pressure. Gently rotate the Allen Key in the direction of the arrow.
Rock the Allen Key back and forth until each T-Nut (N2, N3) is seated correctly. See FIGURE A.

TIP: T-Nuts (N2, N3) can be positioned on both the upper accessory mounts, as well as the Shifter Mounting Tubes. Darker colored T-Nuts have a 1/4 inch thread (N2) while lighter colored, silver T-Nuts have a M6 thread (N3).

CS_GT_C_Adding_the_T-Nuts_to_the_accessory_rails

INSTALLING THIRD-PARTY ACCESSORIES

To complete the step, the following hardware and tools from the step OPTIONAL: INSTALLING THE LEFT AND RIGHT UPPER ACCESSORY MOUNTS will be used:

Mounting Plates (8x)

M6 T-Nuts (4x)

1/4 Inch 20 T-Nuts (4x)

You can add third-party accessories such as Elgato products and streaming equipment to your Fanatec ClubSport GT racing cockpit. Additional third-party mounting hardware may be used with M6 and 1/4 inch threaded T-Nuts (N2).

CS_GT_C_Installing_third-party_accessories

CARE AND MAINTENANCE

Your Fanatec Clubsport GT cockpit is manufactured to be robust and sturdy during use. However, by following basic care and maintenance steps, you can improve the longevity and performance of your cockpit.

IMPORTANT: This product is designed for adult use. We recommend adult supervision for any children using this product.

Before each use of your cockpit, ensure that all the bolts clamping the pedal assembly in place are secure.
Routinely (at least once every two weeks) check the bolts securing the seat brackets, wheelbase, and pedals to ensure they are secure.
To protect the finish of the cockpit, always sufficiently loosen the cam levers and bolts that secure all adjustable parts when using to prevent scraping or cosmetic damage.
To protect the seat, do not place sharp or heavy items on the upholstered sections.
To clean your cockpit, use a clean, dry microfiber cloth or a vacuum with a soft bristle attachment.
Use caution when adjusting seating position to ensure the seat is positioned in the corresponding slots on either side of the seat, and the tracks are free from debris or fingers when sliding the seat.
To protect your seat, do not place heavy items on the upholstered sections.
Ensure a clutter-free environment before use and check to ensure cables are secure.

WARRANTY

All Fanatec racing cockpits have a 2-year warranty.
