MANUAL | QUICK START GUIDE

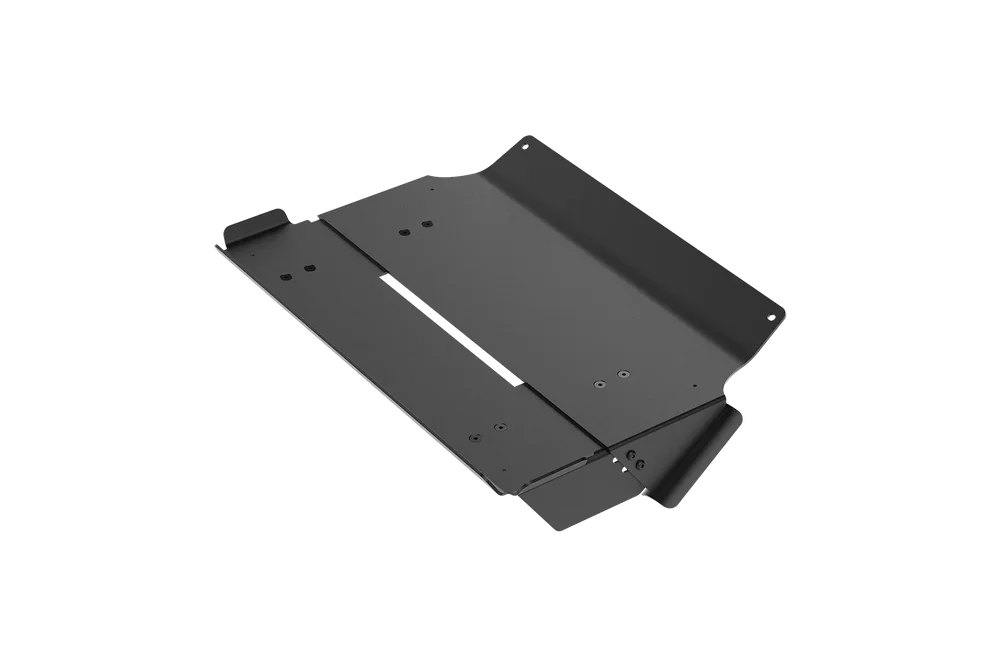

GT Cockpit PC Tray

RACING SIMULATOR PC TRAY

BEFORE YOU START

Please take a moment to carefully read this guide prior to assembling.

This product is also part of our comprehensive ClubSport GT Cockpit Quick Start Guide. To learn more, visit: https://www.fanatec.com/p/cockpits/cs_gt_c_blk/clubsport-gt-cockpit-black

CAUTION: Your cockpit is engineered from steel for strength and durability.

Some of the components are heavy. Please excersise caution when handling these parts.
Ensure the chosen build area is clutter free and there is sufficient space for assembly.
Use a soft floor covering such as an old blanket or rug to protect both the finish of your Fanatec ClubSport GT cockpit and your floor during assembly.
To avoid stripping bolt threads, do not overtighten.
At the end of this guide, you will also find setup tips, suggestions for various driving positions, and peripheral mounting.

INSTALLING THE ACCESSORY PC TRAY

CAUTION: Do not under any circumstances try to lift the front of your cockpit using the installed PC Tray. Securely tighten all nuts and bolts prior to use.

Open the hardware bag labeled PC TRAY.

To complete the step, the following hardware and tools will be used:

M6 Allen Key

M6 Open-ended Wrench

M6 15mm Bolts (4x)

M6 20mm Countersunk Bolts (8x)

M6 Flange Nut (12x)

1. Remove the two lowest M6 12mm Bolts (B3) from the Top Panel (10).

2. Position the main PC Tray over the holes in the Top Panel (10) and hold it securely while you screw back in the two previously removed M6 12mm Bolts (B3). Do not release the tray until it is fully secured.

CS_GT_C_Installing_the_accessory_PC_tray-1

3. Secure the right-side supporting bracket to the main PC Tray with two M6 15mm Bolts (B4) and two M6 Flange Nuts (N4).

4. Repeat the process for the left-side supporting bracket.

5. Secure the front section to the attached left and right supporting brackets with four M6 20mm Countersunk Bolts (C4) and four M6 Flange Nuts (N4).

CS_GT_C_Installing_the_accessory_PC_tray-2

6. Use the remaining four M6 20mm Countersunk Bolts (C4) and four M6 Flange Nuts (N4) to additionally secure the main tray to the supporting brackets.

CS_GT_C_Installing_the_accessory_PC_tray-3

ADJUSTING THE PC TRAY WIDTH

To complete the step, the following tool will be used:

In order to accommodate a larger PC case, the depth of the PC Tray can be adjusted:

Loosen the four M6 15mm Bolts (B4) and four M6 Flange Nuts (N4) on the left and right side of the PC Tray.
Loosen the four M6 20mm Countersunk Bolts (C4) and four M6 Flange Nuts (N4) on the top of the PC Tray.
Adjust the PC Tray outwards to your desired position, and retighten all 8 bolts before placing your computer or console onto the PC Tray.

CARE AND MAINTENANCE

Your Fanatec Clubsport GT cockpit is manufactured to be robust and sturdy during use. However, by following basic care and maintenance steps, you can improve the longevity and performance of your cockpit.

IMPORTANT: This product is designed for adult use. We recommend adult supervision for any children using this product.

Before each use of your cockpit, ensure that all the bolts clamping the pedal assembly in place are secure.
Routinely (at least once every two weeks) check the bolts securing the seat brackets, wheelbase, and pedals to ensure they are secure.
To protect the finish of the cockpit, always sufficiently loosen the cam levers and bolts that secure all adjustable parts when using to prevent scraping or cosmetic damage.
To protect the seat, do not place sharp or heavy items on the upholstered sections.
To clean your cockpit, use a clean, dry microfiber cloth or a vacuum with a soft bristle attachment.
Use caution when adjusting seating position to ensure the seat is positioned in the corresponding slots on either side of the seat, and the tracks are free from debris or fingers when sliding the seat.
To protect your seat, do not place heavy items on the upholstered sections.
Ensure a clutter-free environment before use and check to ensure cables are secure.

WARRANTY

All Fanatec racing cockpits have a 2-year warranty.
