MANUAL | QUICK START GUIDE
ClubSport Handbrake V1.5
CONTENTS

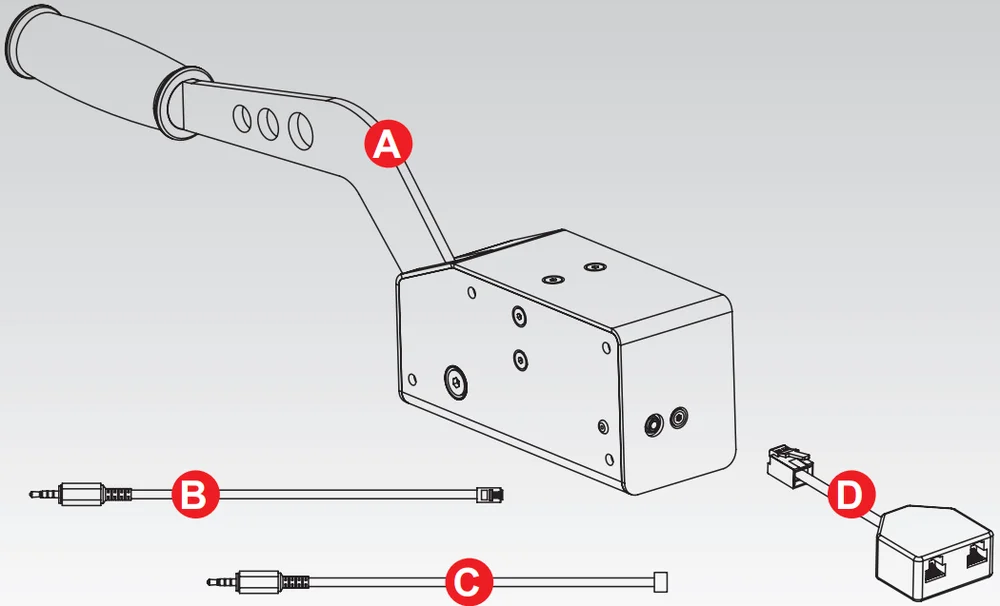

A ClubSport Handbrake V1.5
B 3m Connection cable to Wheel Bases*, Pedals*, USB Adapter*
C 3m Connection cable to ClubSport Pedals V2*
D ClubSport Handbrake Adapter to connect to ClubSport Wheel Base*
*not included
NOTE: Mounting screws and tools are not included
1

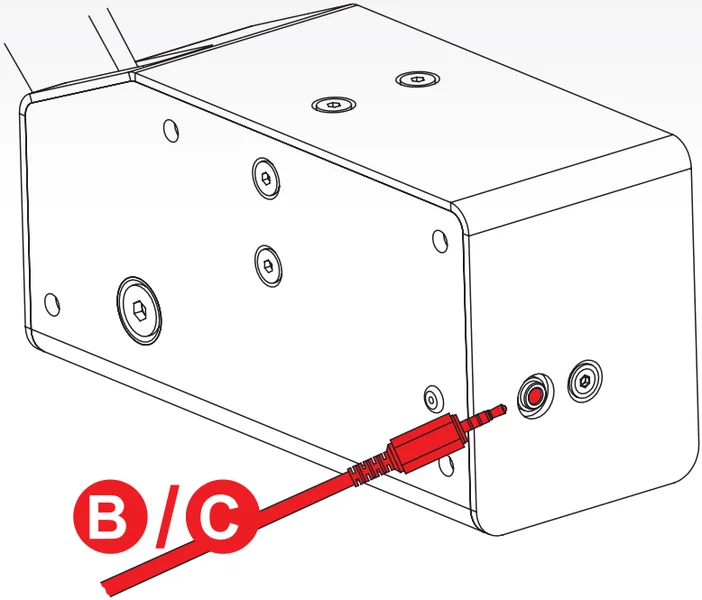

Always connect cable first to handbrake connector jack! Power ON the wheel base or connect the USB adapter after all cable connections were established.
2
The first complete pull of the lever after power on will calibrate the minimum and maximum positions of the handbrake.

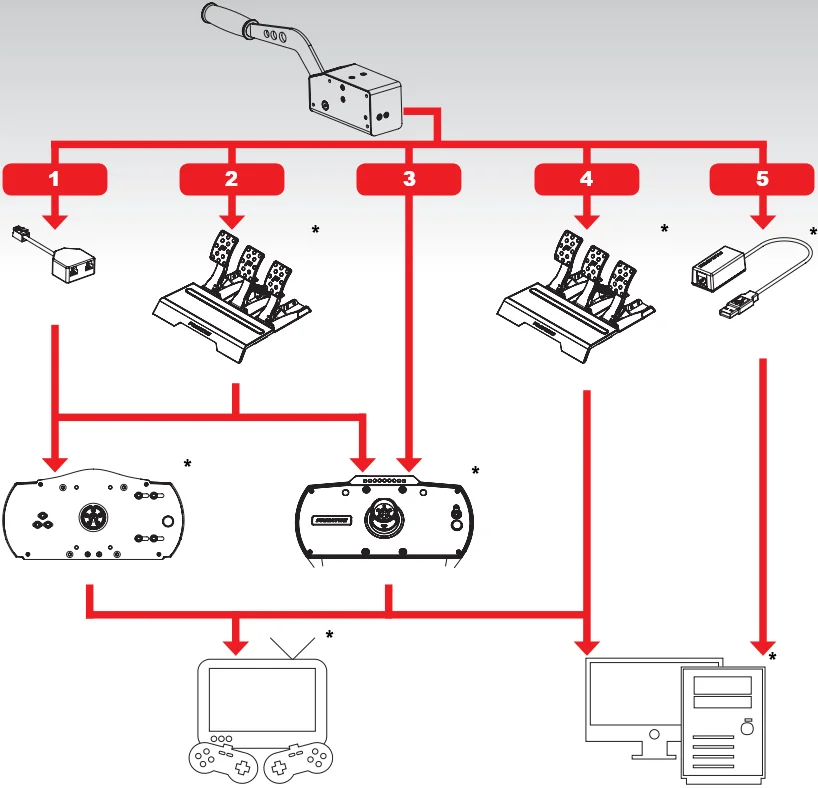

CONNECTIONS
*not included

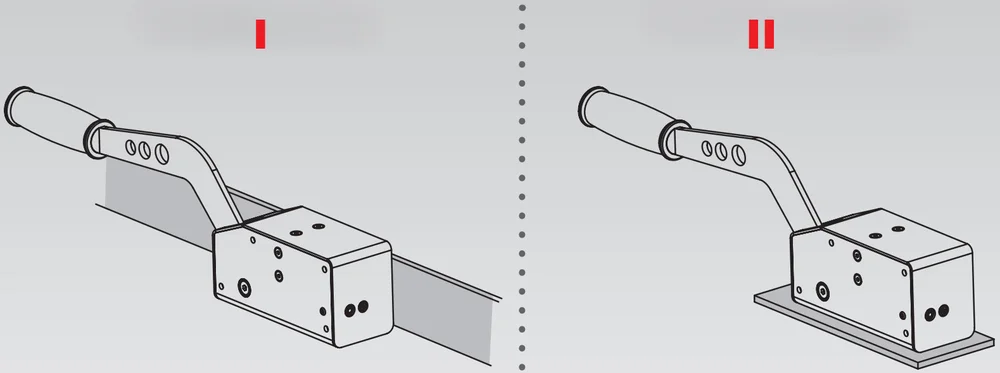

MOUNTING OPTIONS
OPTION I:

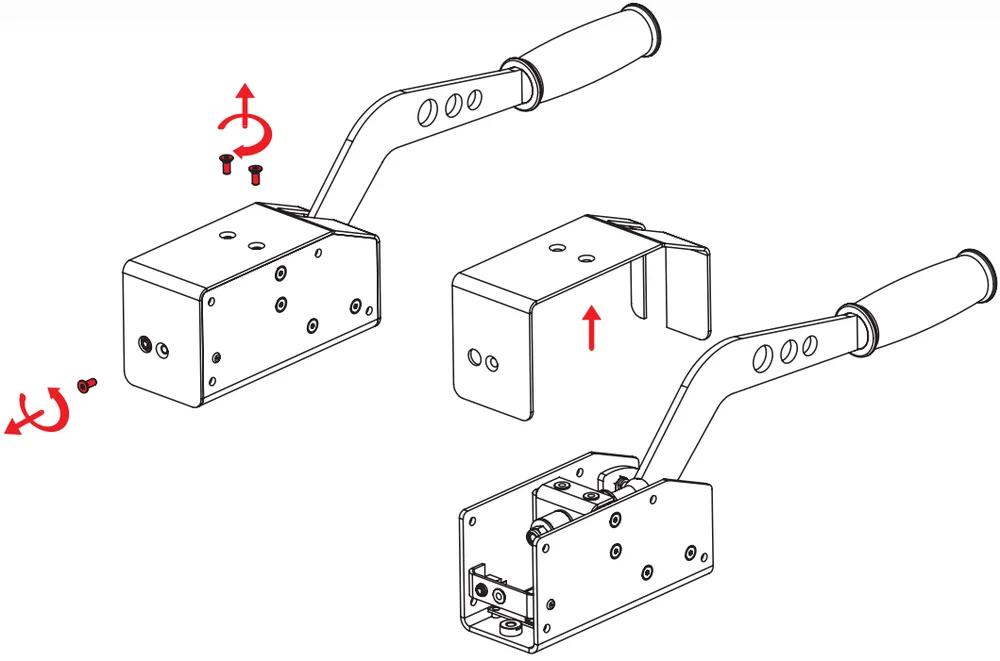

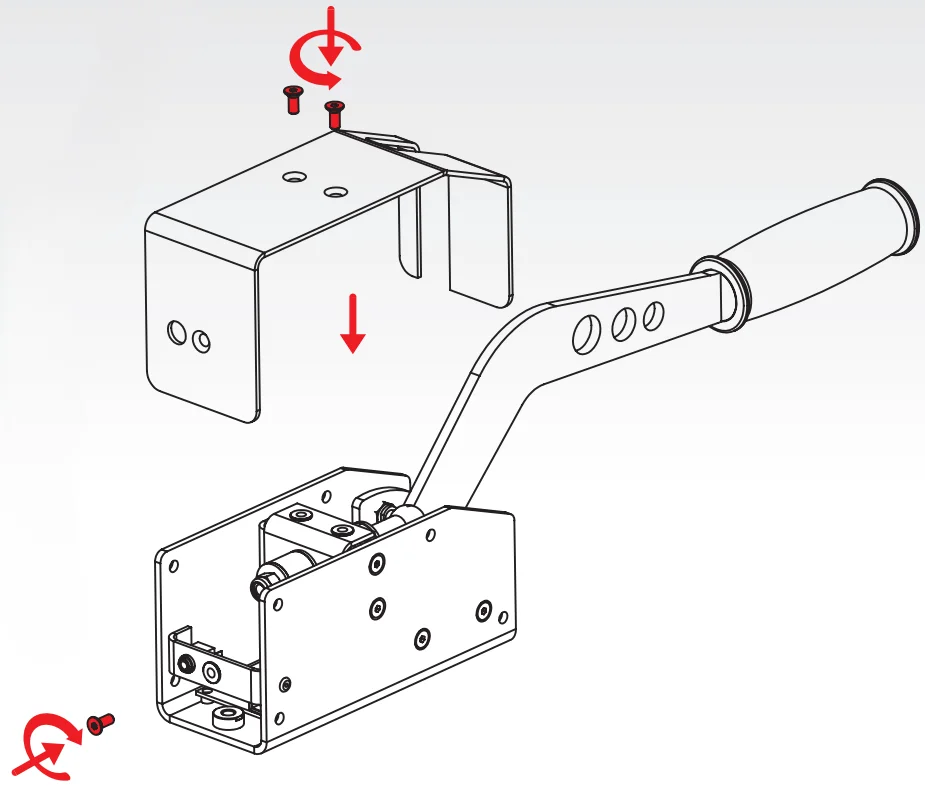

1 Loosen screws and remove cover

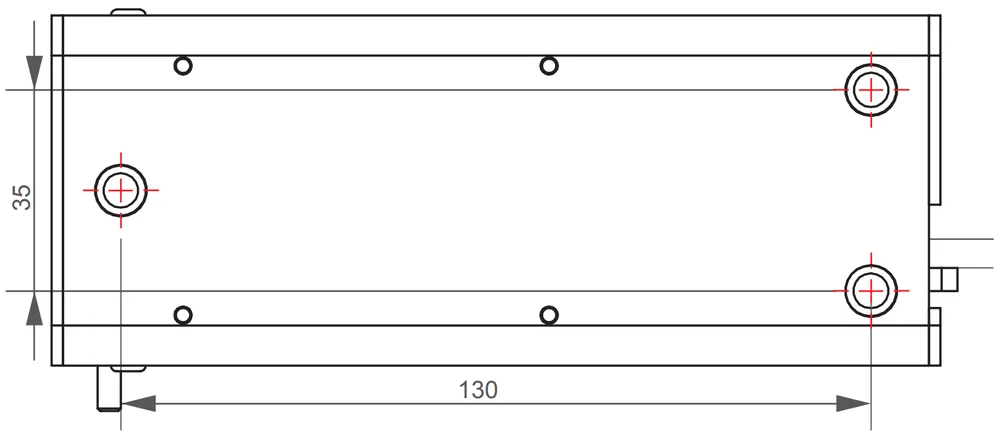

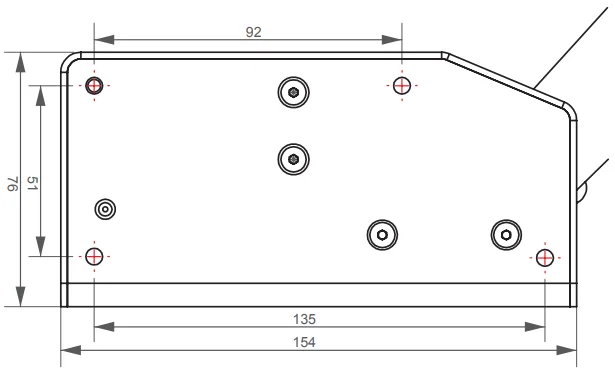

2 Use drilling template to drill holes at the correct position on your rig (extra sheet)
3 Mount ClubSport Handbrake
4 Attach cover, insert and tighten screws to secure it in place
OPTION II:

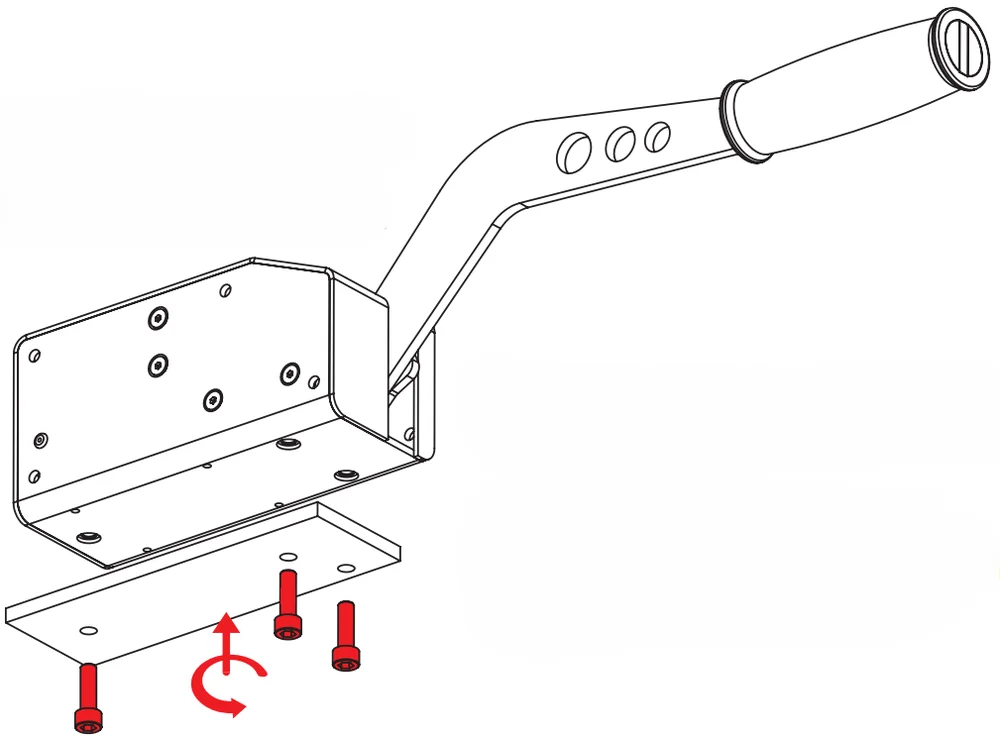

1 Insert and tighten screws. Use M6 screws with max lentgh inside housing of 10 mm
2 Use drilling template to drill holes at the correct position on your rig (extra sheet)
LEVER OPTIONS

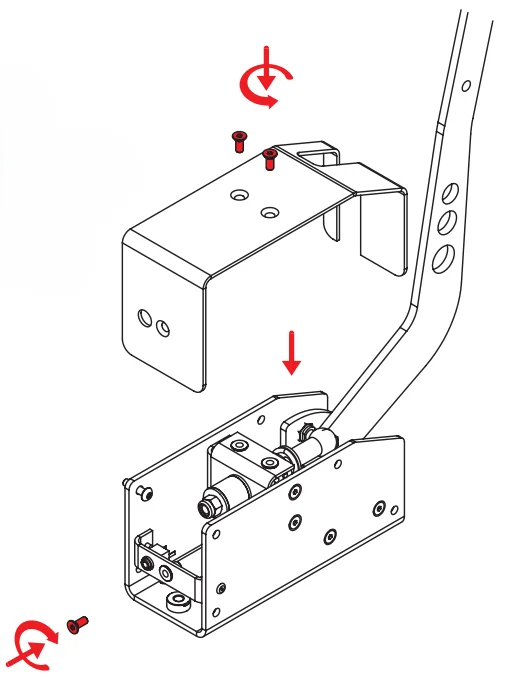

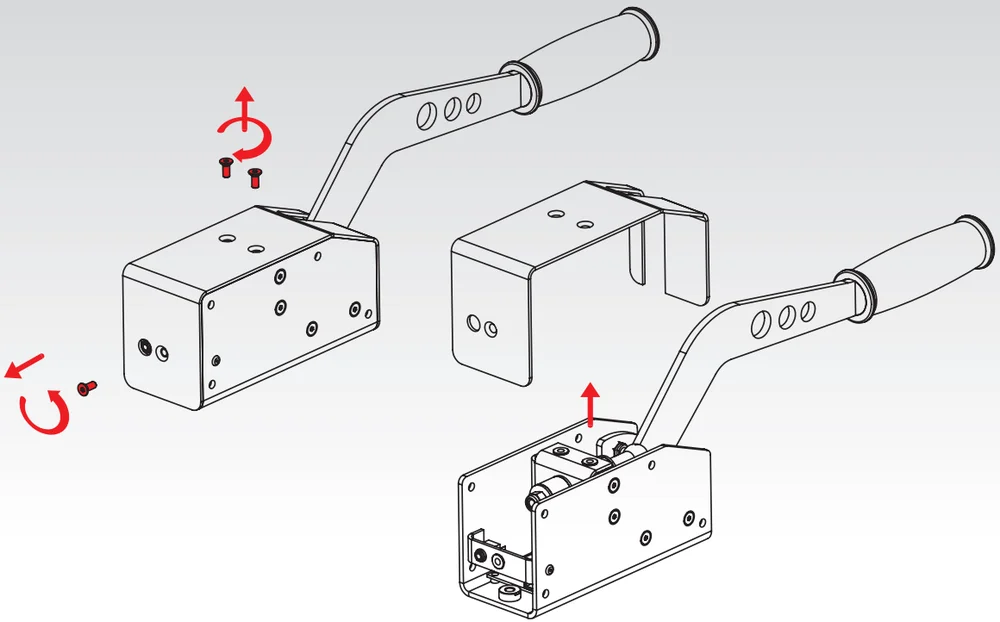

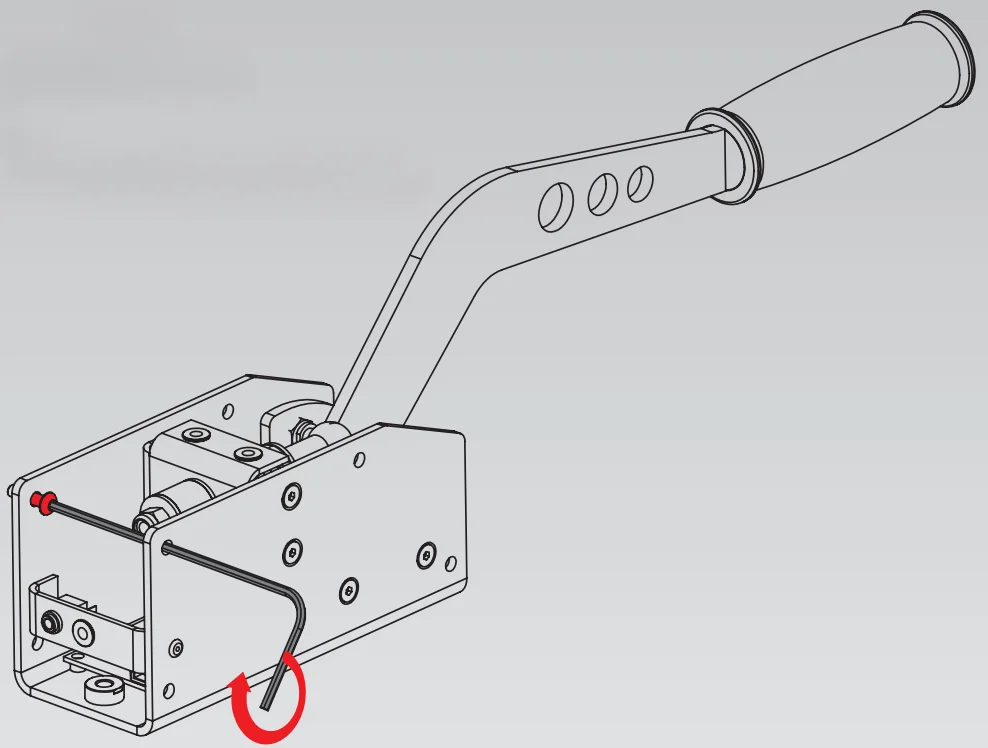

1 Loosen screws and remove cover

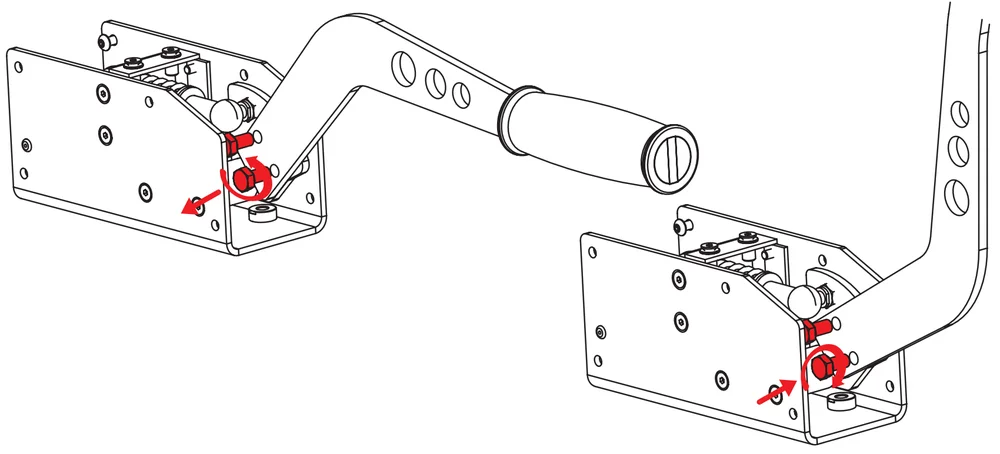

2 Reassemble lever to vertical position
3 Attach cover, insert and tighten screws to secure cover in place
