MANUAL | QUICK START GUIDE

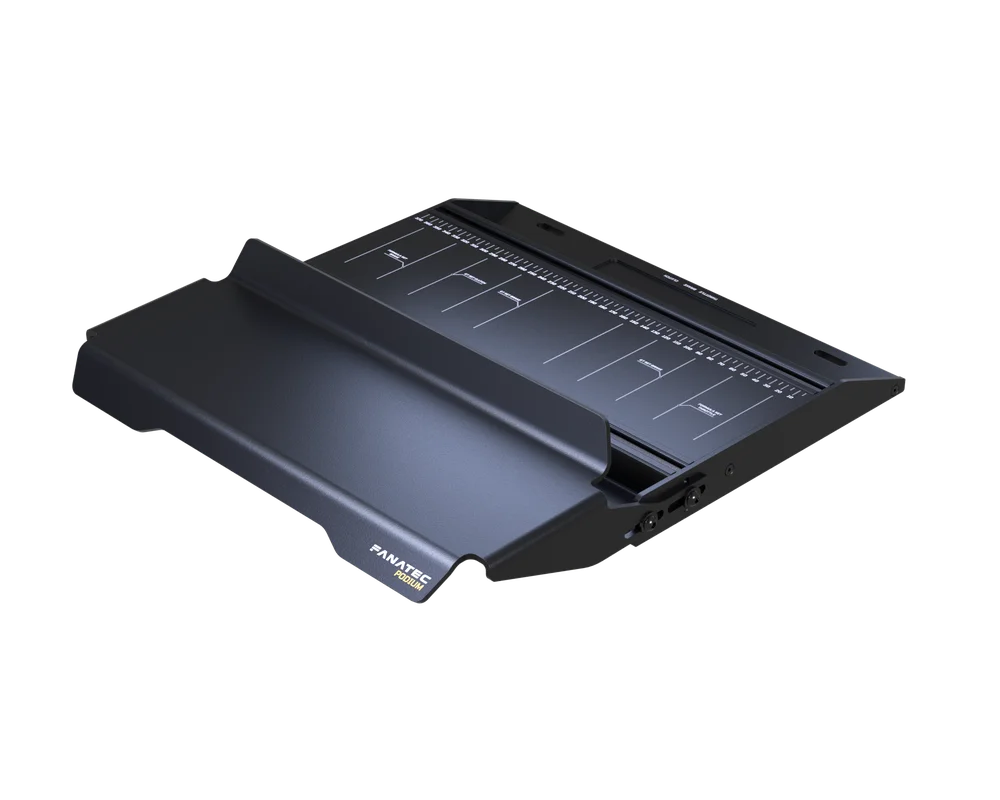

Podium Pedals Mounting Plate & Heelrest
A - PACKAGE CONTENT

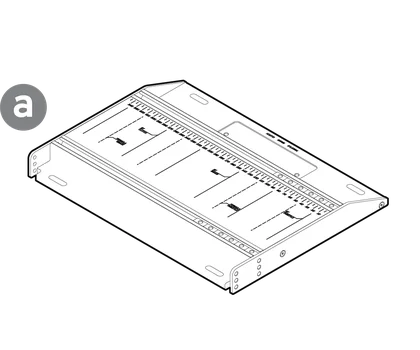

1x Podium Pedals Mounting Plate
1x Heel Rest
1x Long Allen Key Tool
12x M6 T-Nuts (Preinstalled)
4x Washers (Heel Rest Mounting)
4x M6 x 10 mm Bolts (Heel Rest Mounting)
4x M6 x 25 mm Bolts (Hard-Mounting)
4x Washers (Hard-Mounting)
4x M6 Flange Nuts
1x Safety & Compliance Leaflet
B - HARD-MOUNTING
B1 - GENERIC PEDAL DECK / ALU-PROFILE / CLUBSPORT GT COCKPIT
STEP 1

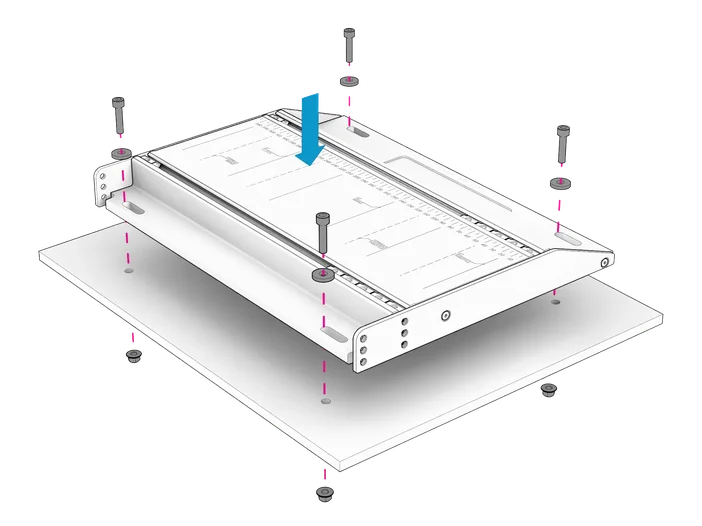

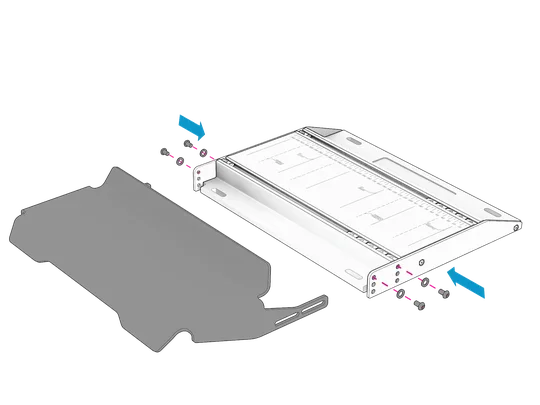

Mount the Mounting Plate to any metallic pedal deck, aluminum profile extrusion, or ClubSport GT Cockpit pedal deck in your desired position using parts (g), (h), (i), and the Allen key (c).
|
CAUTION: Only mount the Base Plate to a solid metallic surface. Any other material such as wood or plastic may result in damage to the product.
|
|
NOTE: 10mm wrench required to tighten up the hard-mount. M6 T-nuts are required for mounting to aluminum profile extrusions. Not included. |
|
TIP: Use the provided Drilling Template if needed. |
B2 - CSL COCKPIT
STEP 1

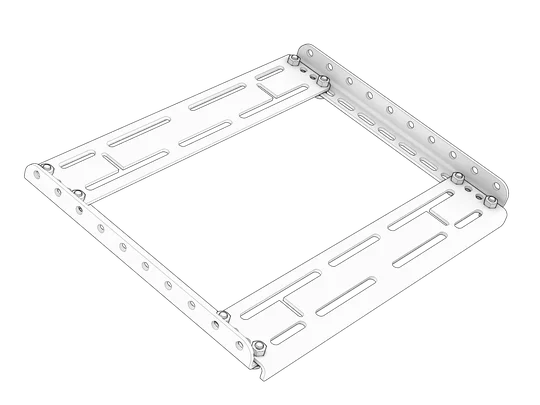

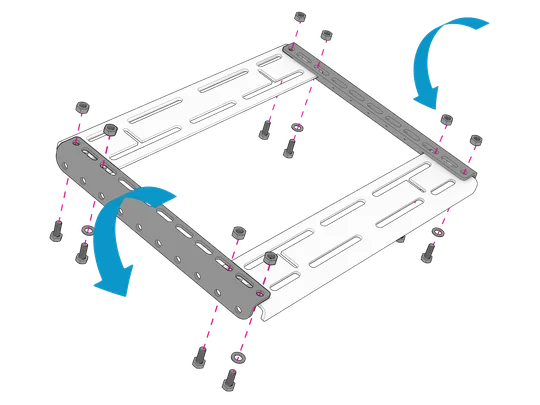

Remove the pedal deck from your CSL Cockpit and invert the left and right side brackets as illustrated below.
STEP 2

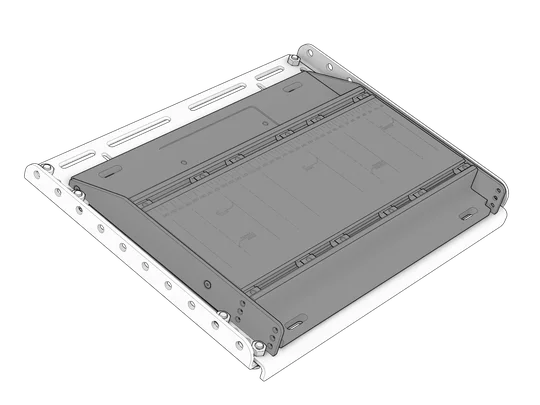

Ensure that nuts from the CSL Cockpit pedal deck are in a position to accommodate the Mounting Plate as illustrated in the left image.
| NOTE: Due to a tight fitment, carefully place the Mounting Plate in the correct position. |
C - HEELREST

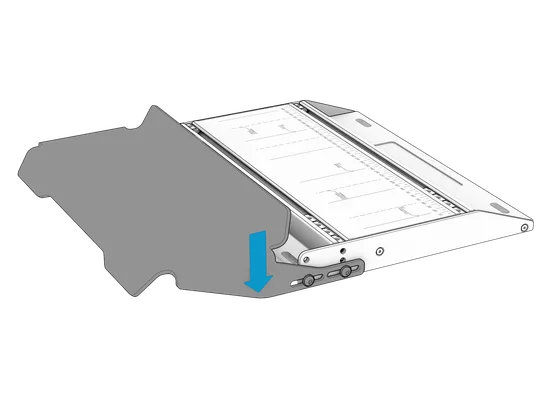

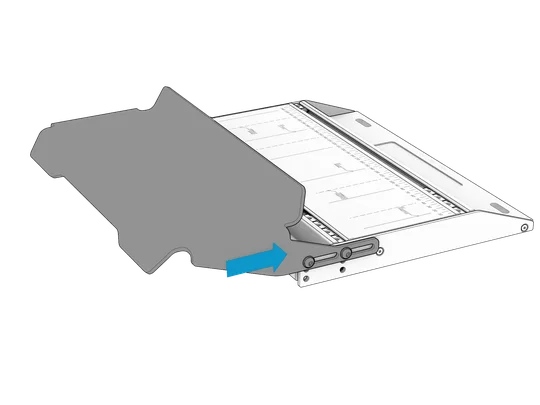

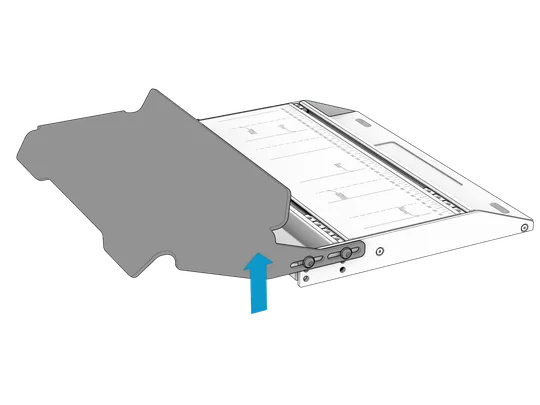

Attach the heel rest (b) using parts (e), (f), and the appropriate Allen key included with your Podium Pedals or Podium Pedals Formula.

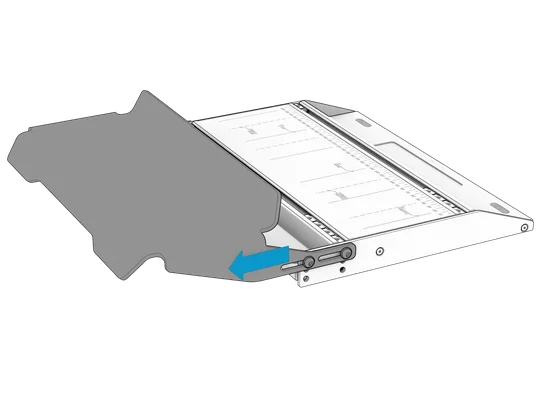

| TIP: The heel rest can be positioned in many different ways as shown below. |
D - MOUNTING THE PODIUM PEDALS
STEP 1
Choose the optimal mounting position for your Podium Pedals or Podium Pedals Formula as illustrated below.

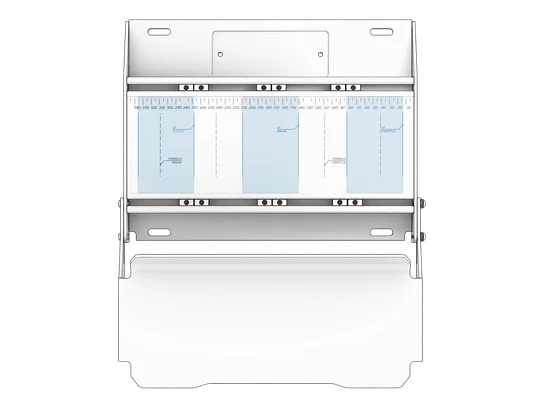

PODIUM PEDALS (GT LAYOUT)

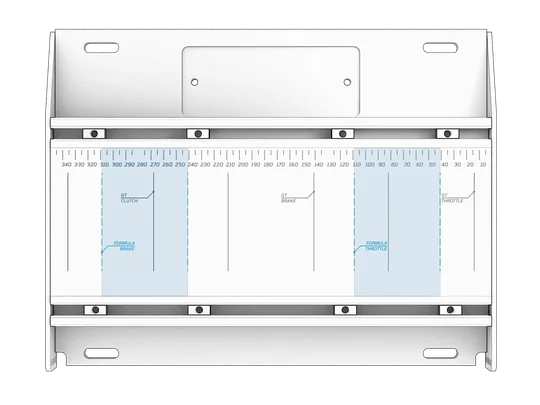

PODIUM PEDALS FORMULA
STEP 2

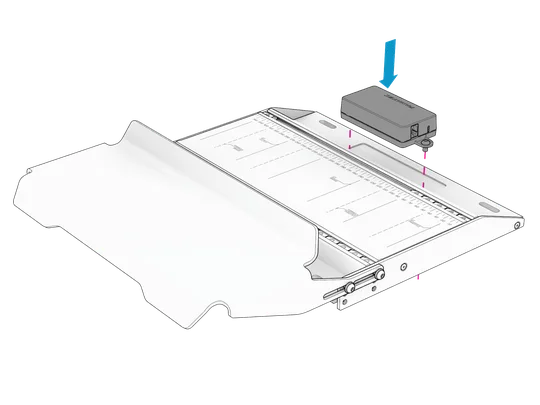

Attach the Podium Pedals connection box using the parts included with your Podium Pedals to the Mounting Plate with the ports facing rearwards.
STEP 3

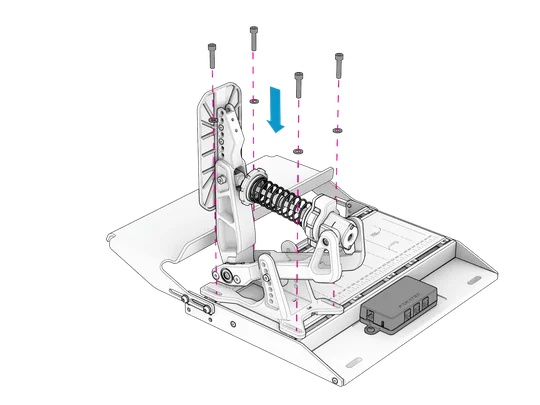

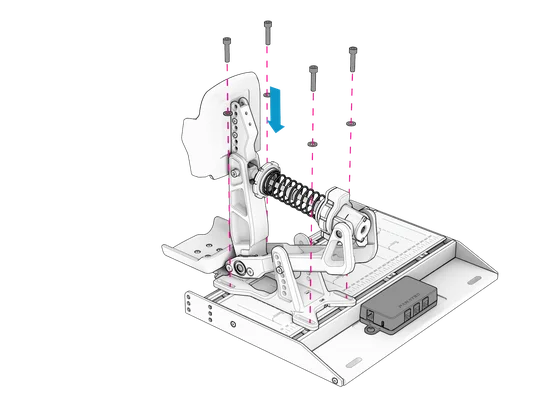

Mount each pedal module to the Mounting Plate using the parts included with your Podium Pedals.
|
CAUTION: Ensure that the RJ12 cable of each pedal module is not pinched before mounting. |
PODIUM PEDALS
PODIUM PEDALS FORMULA
E - MAINTENANCE
Use a dry, lint-free cloth to wipe off excess dust.
| CAUTION: Do not use any cleaning solutions or water! |
F - WARRANTY
The product warranty is provided by CORSAIR MEMORY, Inc. Refer to the terms & conditions of CORSAIR MEMORY, Inc. on Fanatec.com.
