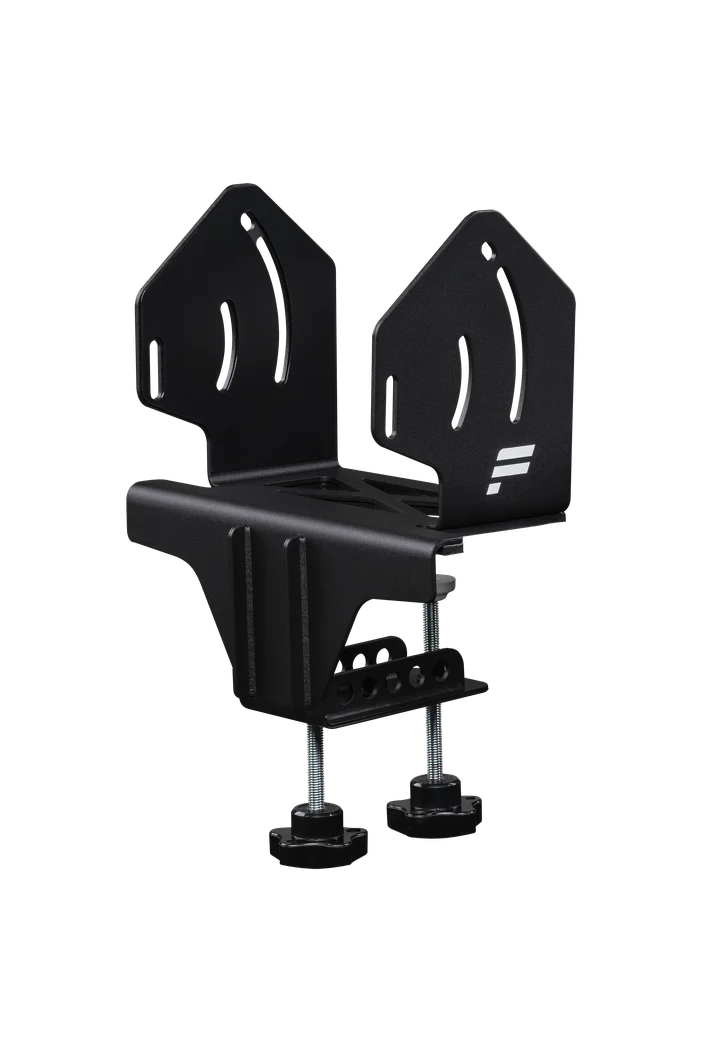

ClubSport DD Table Clamp

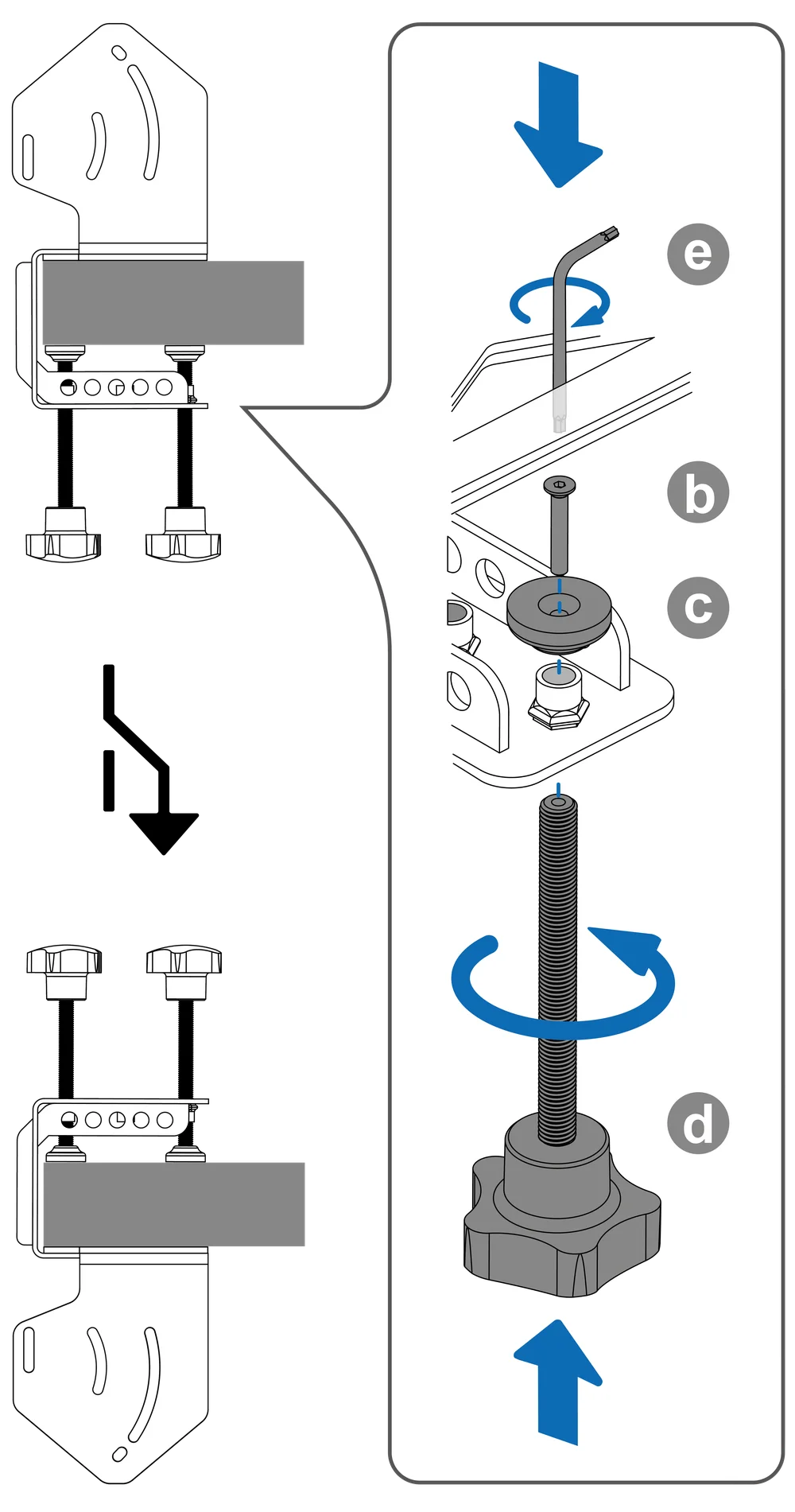

Thread the star grip bolts (d) into the base of the table clamp.

Insert the Torx bolts (b) into the rubber stops (c).
Attach the rubber stops to the star grip bolts using the included Torx key (e).

NOTE: The ClubSport DD Table clamp can also be mounted inverted.

The ClubSport DD Table Clamp supports up to 60 mm table thickness.

Place the clamp on your desk or table and tighten the clamp bolts.

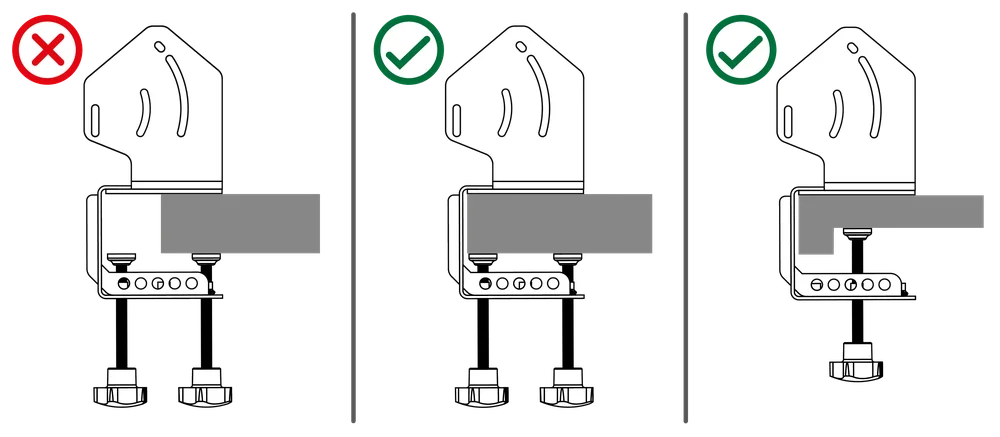

Make sure the table clamp is securely seated against the front of the desk/table.

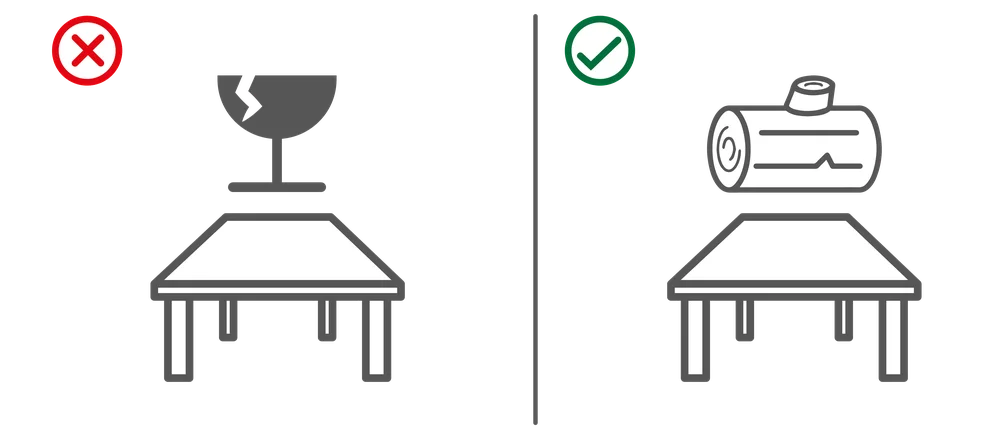

ATTENTION!: Do not use the ClubSport DD Table Clamp with a glass table to avoid damaging the table.

Slide the M6x8 mm T-nuts included with your wheel base into the side rails of the T-nut rail system.

Align the T-nuts with the adjustment slots of the table clamp.

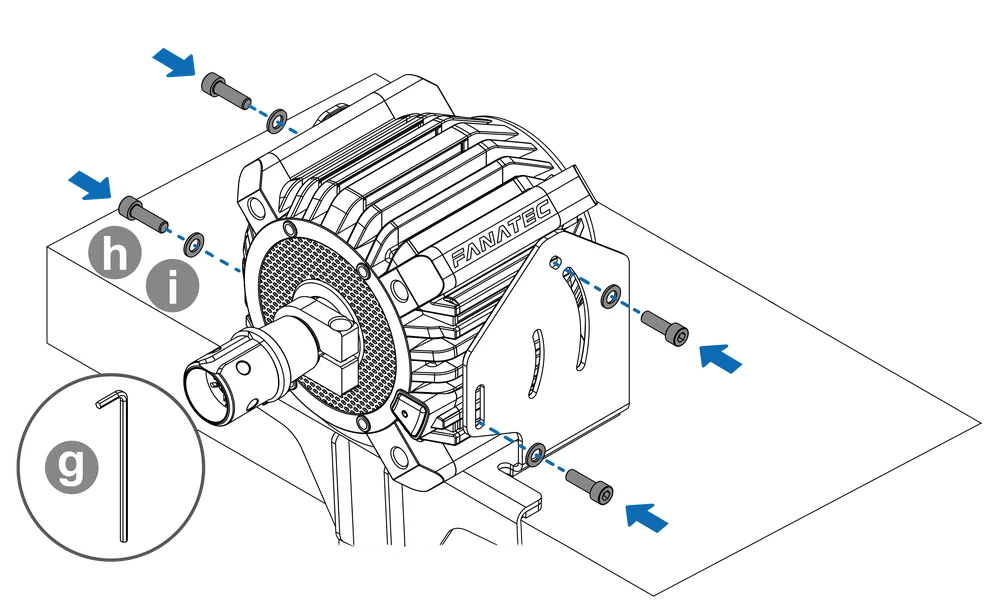

Use the included Allen bolts (h) and washers (i) to mount your wheel base to the table clamp. Do not fully tighten the bolts if you want to adjust your wheel base angle first.

Top Mounting

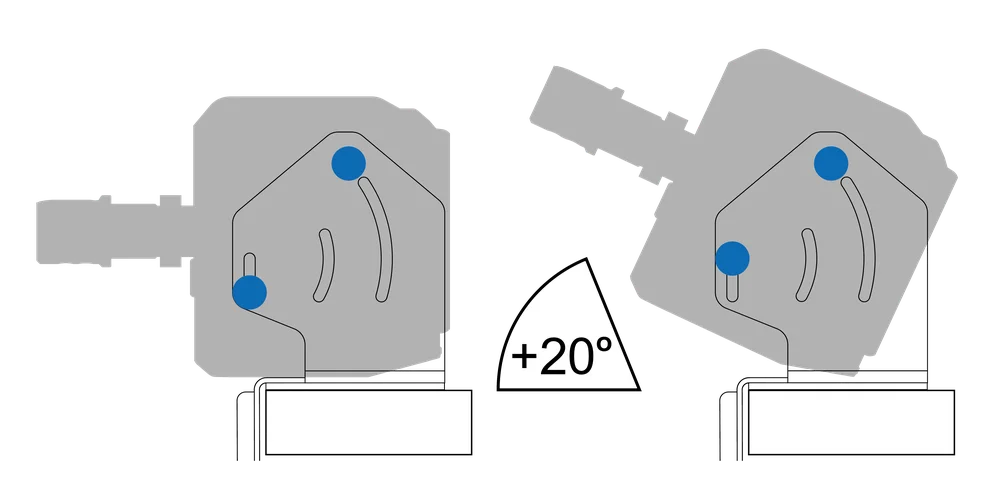

When mounted to the top of your table, the ClubSport DD Table Clamp allows for angle adjustment up to 20 degrees.

ATTENTION!: Do not tilt the wheel base more than 20 degrees to avoid damaging the connection cables.

Once your preferred angle is set, tighten the bolts with the included Allen key (g).

Inverted Mounting

For inverted mounting, place the T-nuts in the lowest rail and align them with the adjustment slots.

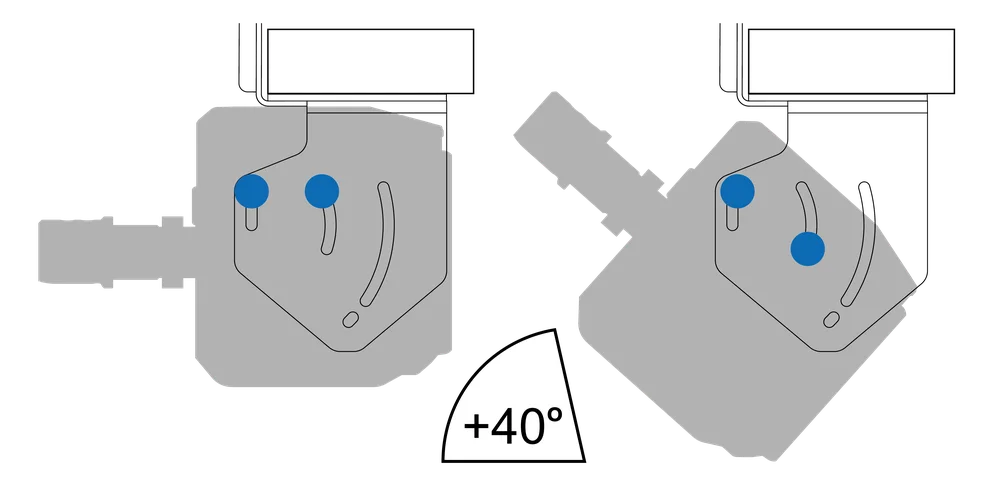

When inverted, the ClubSport DD Table Clamp allows for angle adjustment up to 40 degrees.

Once your preferred angle is set, tighten the bolts with the included Allen key (g).
