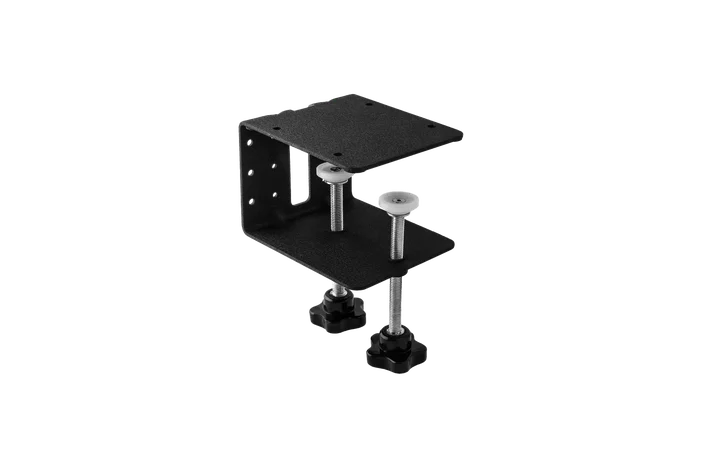

ClubSport Shifter Table Clamp

STEP 1

Align your shifter with the mounting holes of the table clamp.

Attach the shifter using 4 countersunk M6 bolts (max. thread length 15 mm) and tighten using a 6 mm Allen key (not included).

STEP 2

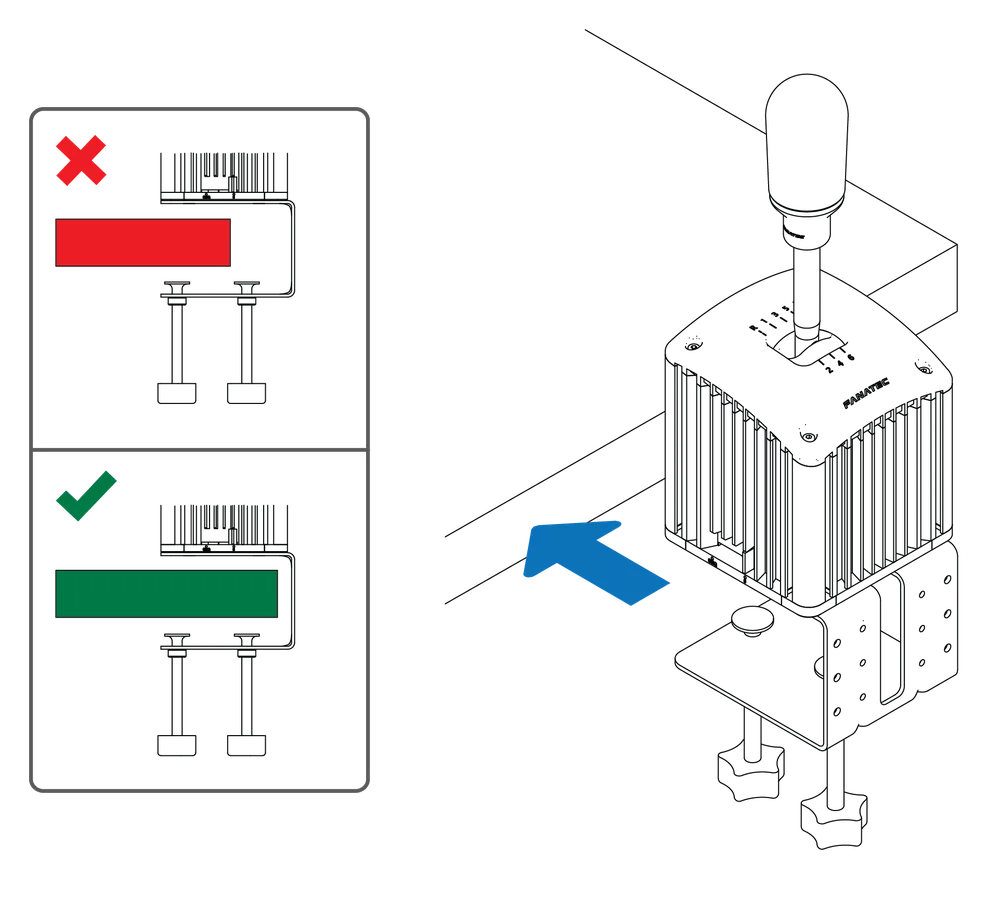

Place the clamp on your desk or table and tighten the clamp bolts. The ClubSport Shifter Table Clamp supports up to 77 mm table thickness.

Make sure the table clamp is securely seated against the front of the desk/table and the clamp feet are completely touching the mounting surface.

ATTENTION: Do not use the ClubSport Shifter Table Clamp with a glass table to avoid damaging the table.

STEP 1

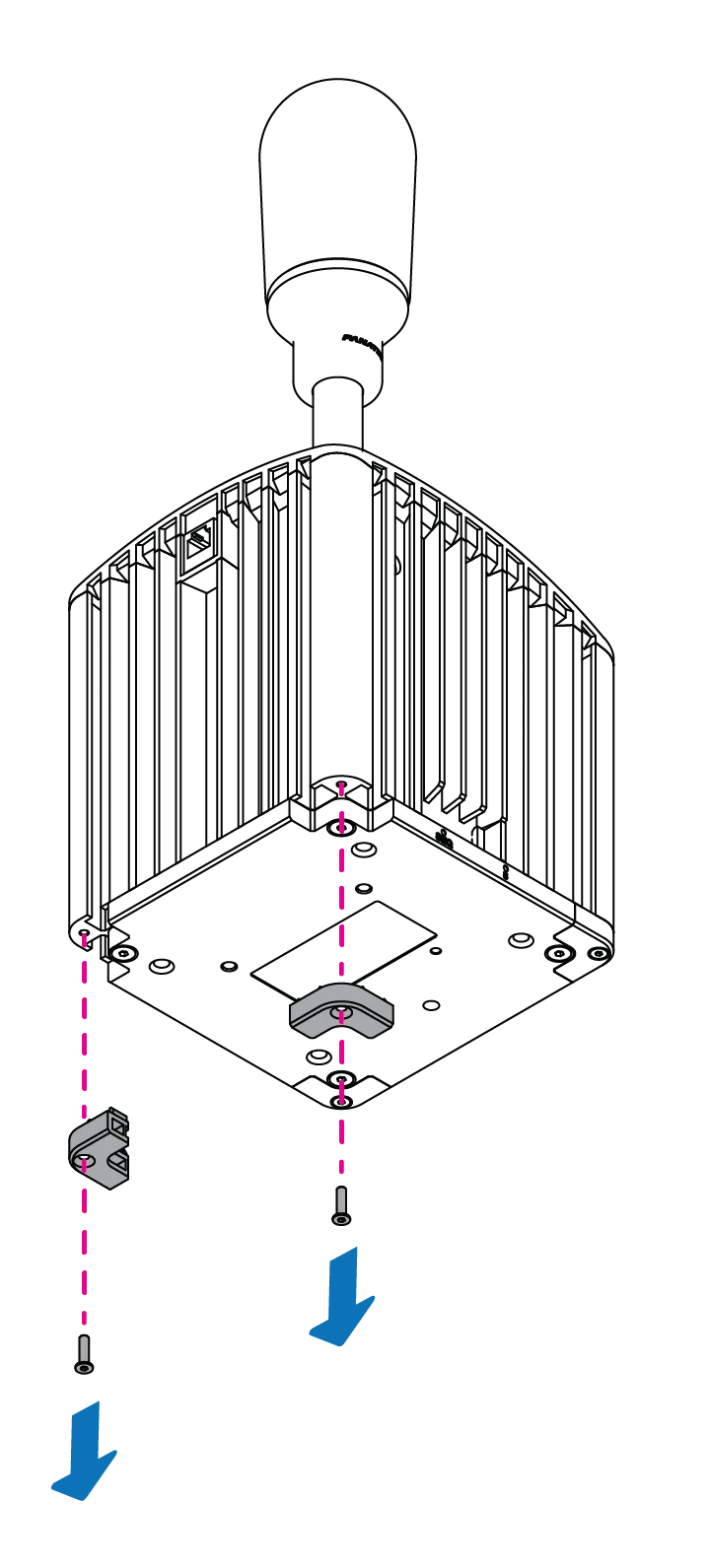

Remove the end caps on the bottom of your shifter using a 2 mm Allen key (not included).

STEP 2

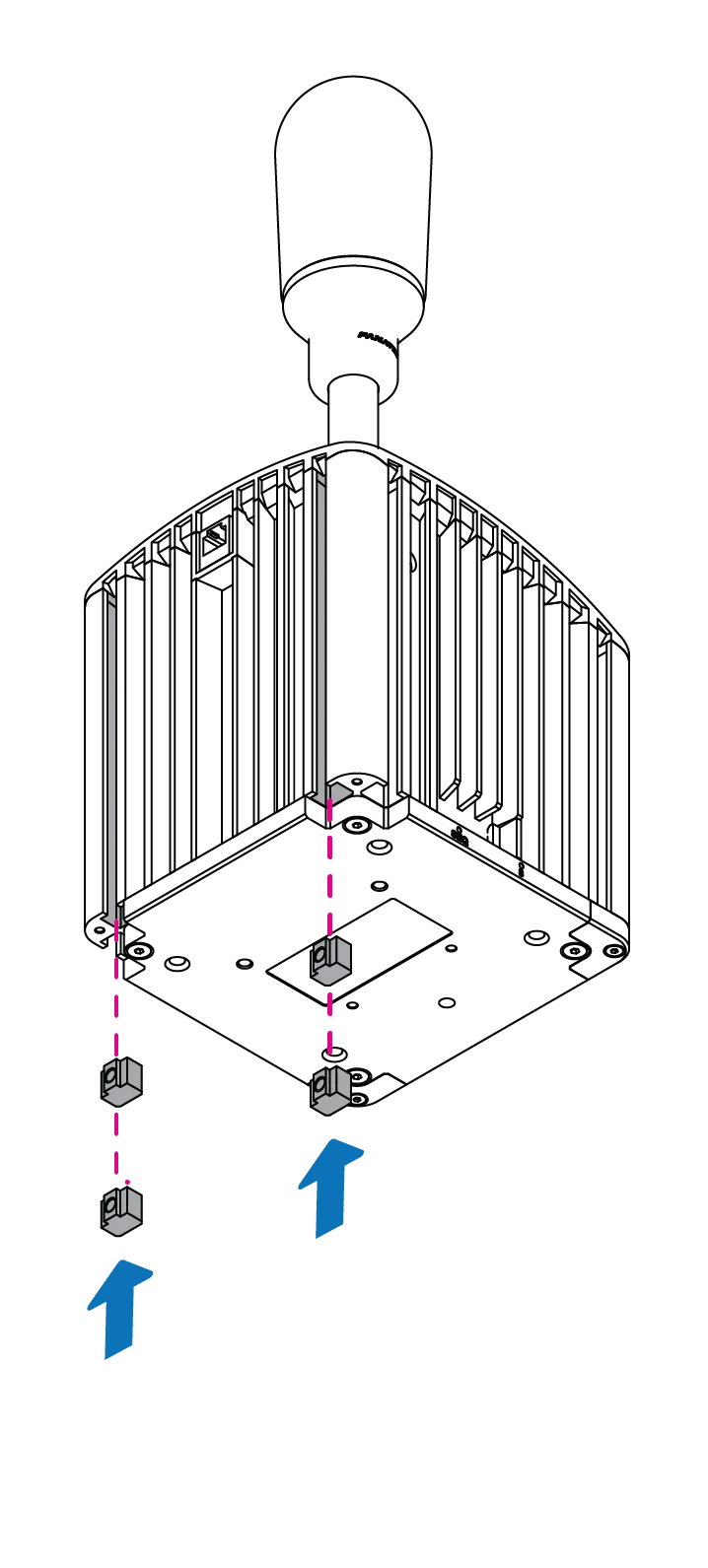

Insert the T-nuts included with your ClubSport Shifter.

STEP 3

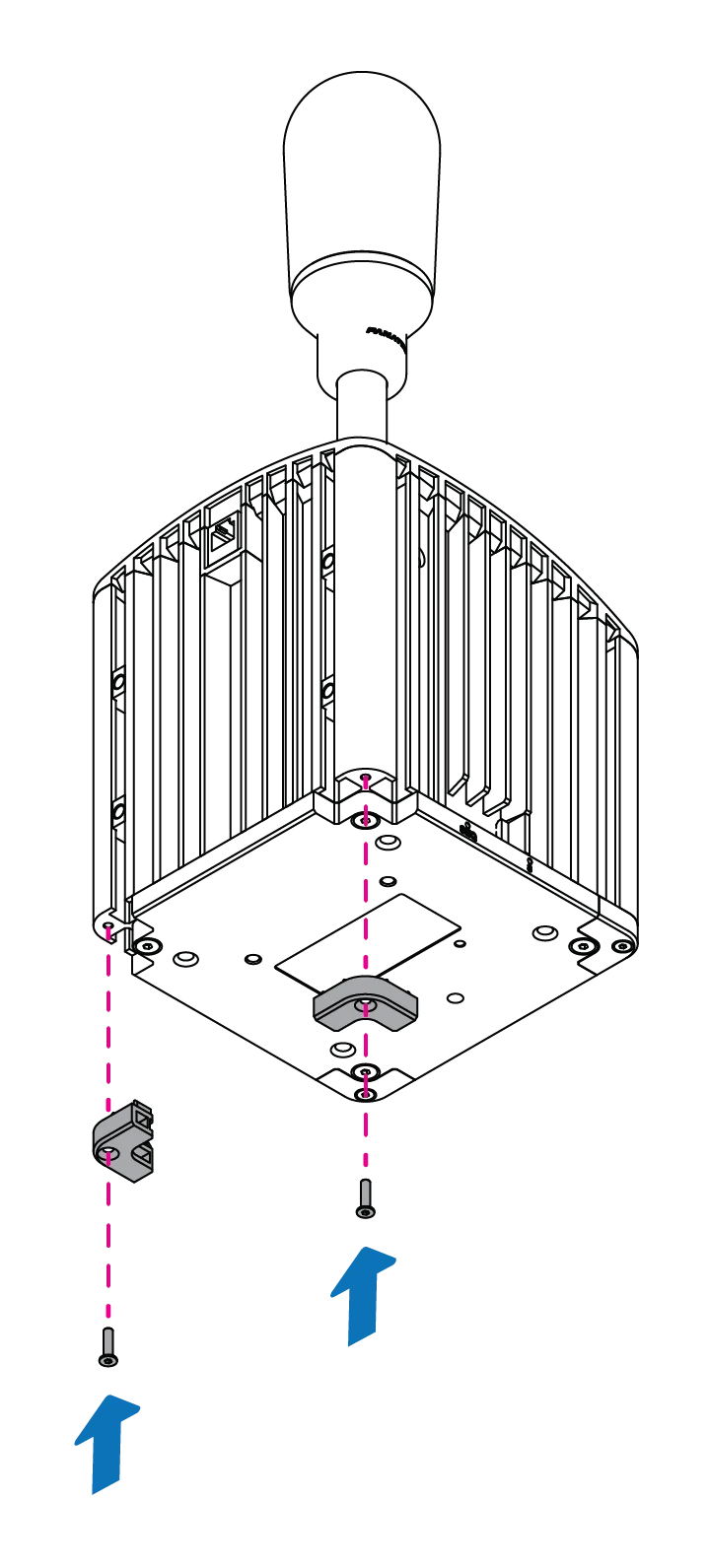

Reattach the bottom covers to the shifter.

STEP 4

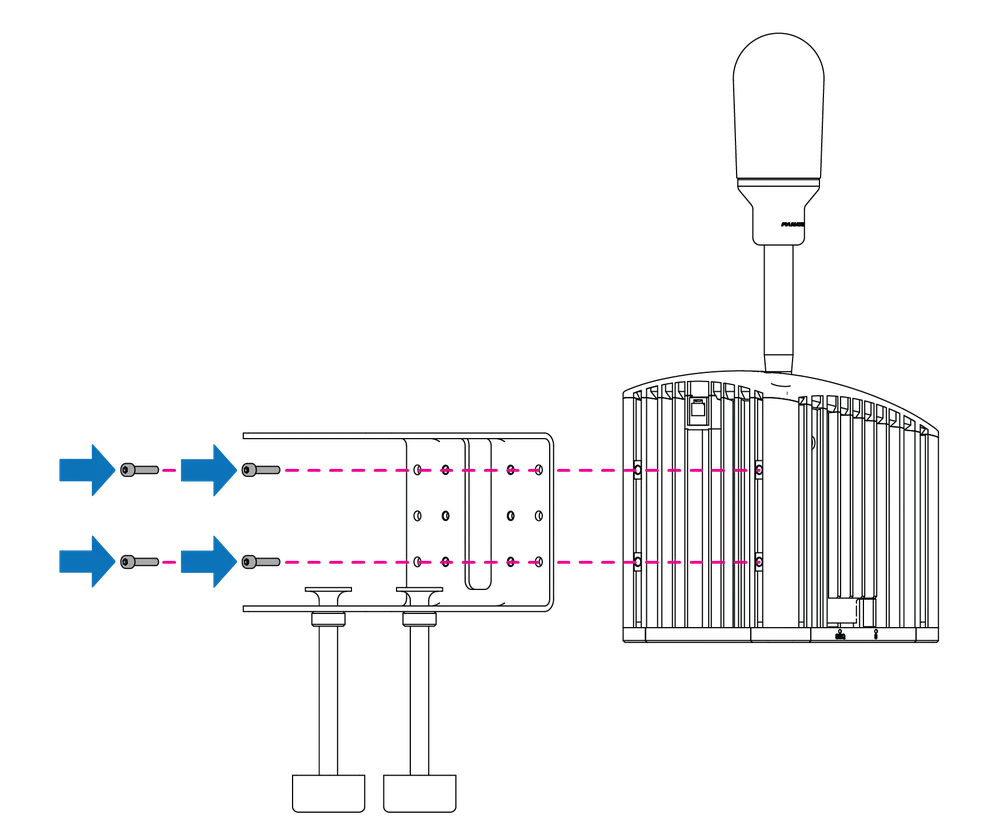

Align the T-nuts with the mounting holes of the table clamp.

Attach the shifter using M5 bolts included with your shifter and tighten using a 5 mm Allen key (not included).

STEP 5

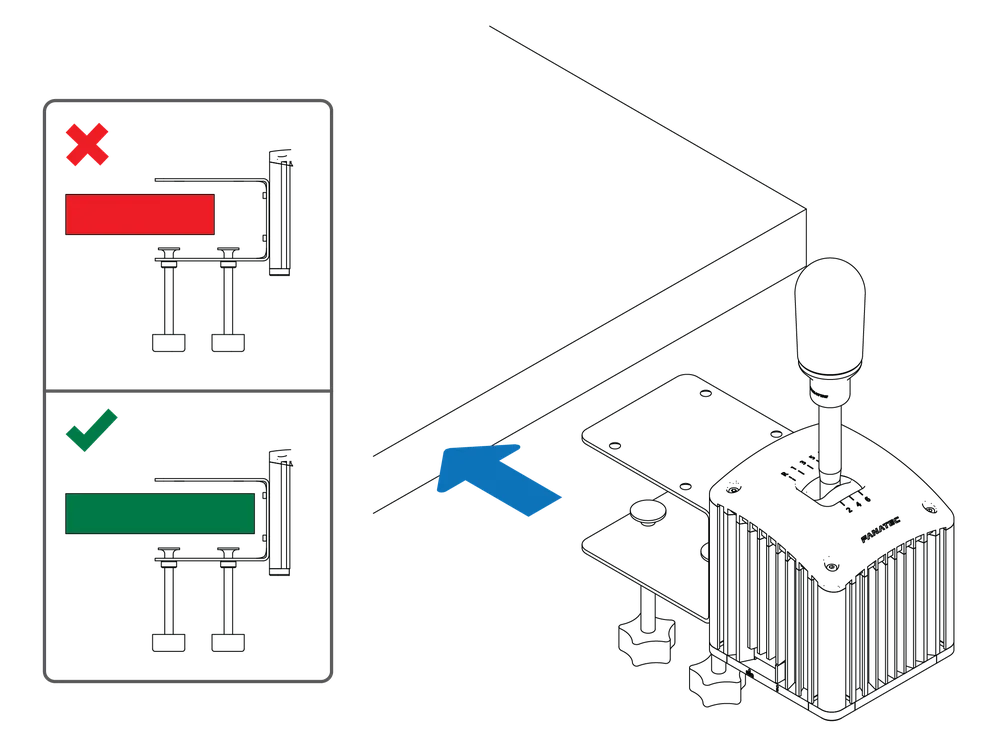

Place the clamp on your desk or table and tighten the clamp bolts. The ClubSport Shifter Table Clamp supports up to 77 mm table thickness.

Make sure the table clamp is securely seated against the front of the desk/table and the clamp feet are completely touching the mounting surface..

ATTENTION: Do not use the ClubSport Shifter Table Clamp with a glass table to avoid damaging the table.
